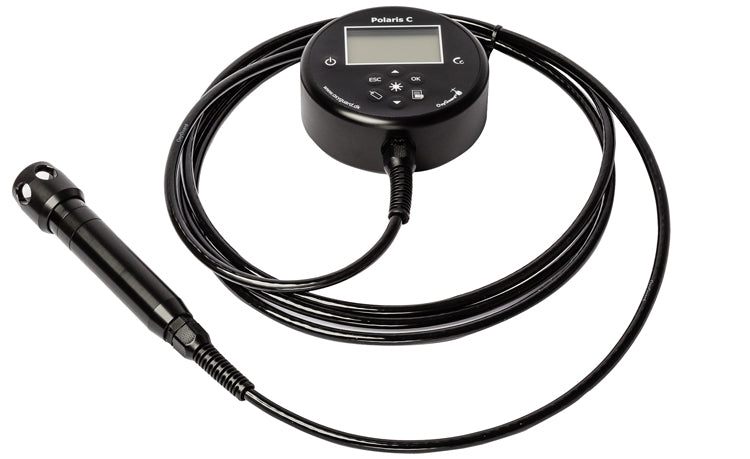

OxyGuard Polaris C DO Meter

Type: 10' cable


The Polaris C meter is a high-performance, low-cost and almost maintenance-free meter for measuring dissolved oxygen and temperature. The meter is sturdy, easy to use and has an extensive longevity making it ideal for harsh conditions.
Polaris C can store up to 2500 complete data sets, including time and date stamps. The logged data is stored in the meter or can be transferred to Cobália using Bluetooth.
Scan the Cobália NFC tag of the tank and all data will be uploaded to your “digital farm”. Tank specific data assigned to the tags will be stored in Cobália for analyses on temporal variations, multivariable analyses on performance and for the generation of graphs.
The meter has a built-in self-check of all hardware, automatic barometric pressure compensation and a notably short response time. With this meter, you get the high-quality associated with OxyGuard technology and a product that will serve you well for many years.

We can customize these meters to suit your needs with longer cables or reels please call for a quote.


Units of measurement: Oxygen: ppm (mg/L), % saturation. Temperature: degrees Celsius (°C), degrees Fahrenheit (°F)
Display: Graphical LCD display with variable backlight
Probe type: Electrochemical
Cable length: Standard 3 m. Available at any length up to 50 meters by request
Operating temperature: Probe: -5 to +45 degrees Celsius (°C) and +23 to +113 degrees Fahrenheit (°F). Meter: -20 to +60 degrees Celsius (°C) and -4 to 140 degrees Fahrenheit (°F)
Waterproof: Short-term immersion proof to 5m depth
Response time: To 90% in less than 20 seconds
Measuring range: Oxygen: 0-60 mg/L and 0-600 % saturation. Temperature: -5 to +45 degrees Celsius (°C) and +23 to +113 degrees Fahrenheit
Measuring accuracy: Oxygen: typically ± 1% of measured value. Temperature: ± 0.2 degrees Celsius/Fahrenheit (°C/°F)
Data logging capacity: 2500 sets of data with up to 99 data groups
Salinity compensation range: 0-50 ppt salinity. Manually set
Automatic check of: Probe function, meter function, cable and battery
Automatic compensation: Temperature and barometric pressure (0-7000 m a.s.l)
Dimensions meter: Length = 98 mm, diameter = 36 mm (Length: 3.86 in, diameter: 1.42 in)
Dimensions probe: Length = 159 mm, diameter = 22 mm (6.26 in, 0.87 in). With protection cap: Length = 176 mm, diameter = 29 mm (6.93 in, 1.14 in)
Power: 2 AA alkaline batteries
Battery life: 1000 hours use depending on settings and battery quality
Standard accessories: 10 membranes and O-rings, 50 ml electrolyte, cathode cleaning pad, tool, storage pouch
