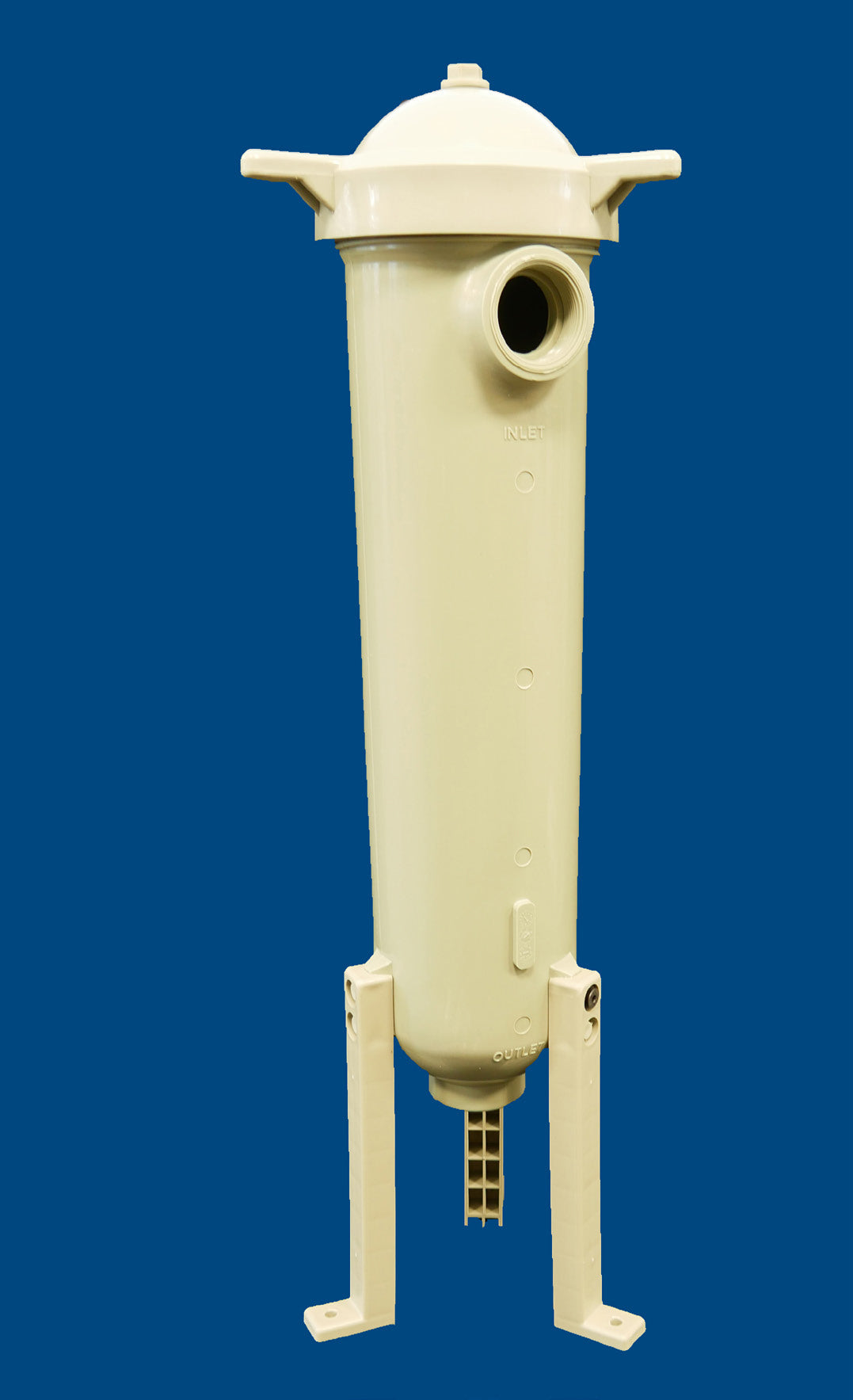

This reasonably priced bag filter vessel is designed to allow high flow rates through a single reusable bag filter. It is rated at 80 gpm for clean water (for particulate laden water and/or to extend time between cleanings, we recommend a design flow rate below 40 gpm). For higher flows, use two or more in parallel. To further extend time between cleaning, place a larger micron filter before a smaller micron filter in series. The vessel is made of polypropylene with a threaded lid, O-ring and removable internal basket for easy bag removal. This vessel has 2” FNPT inlet and outlet and 1/4 ” FNPT lid vent and weighs 10 lbs. Optional pressure gauges for lid vent are listed below. Bags are 6” dia x 20” length with 2 ft2 of surface area. They are fitted with a friction fit ring, which seals directly against the filter housing, eliminating any chance of bypass. Vessels include housing, lid, retainer basket and 3 plastic leg/foot assemblies. Maximum pressure is 100 psi at 110°F. Made in USA. One year warranty.
Link to Filter Bags:
