1-1/2 and 2 hp Rotary Vane Compressors

SKU: AQ20
$1,739.34

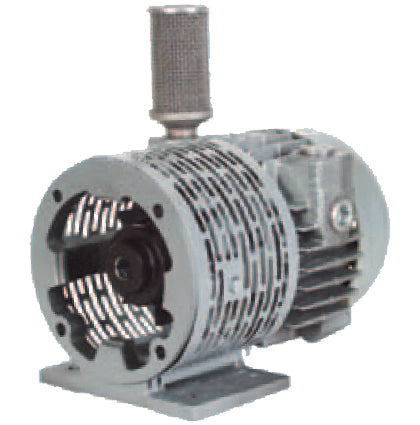

Compressor: Head Only
Phase: Head Only

Description

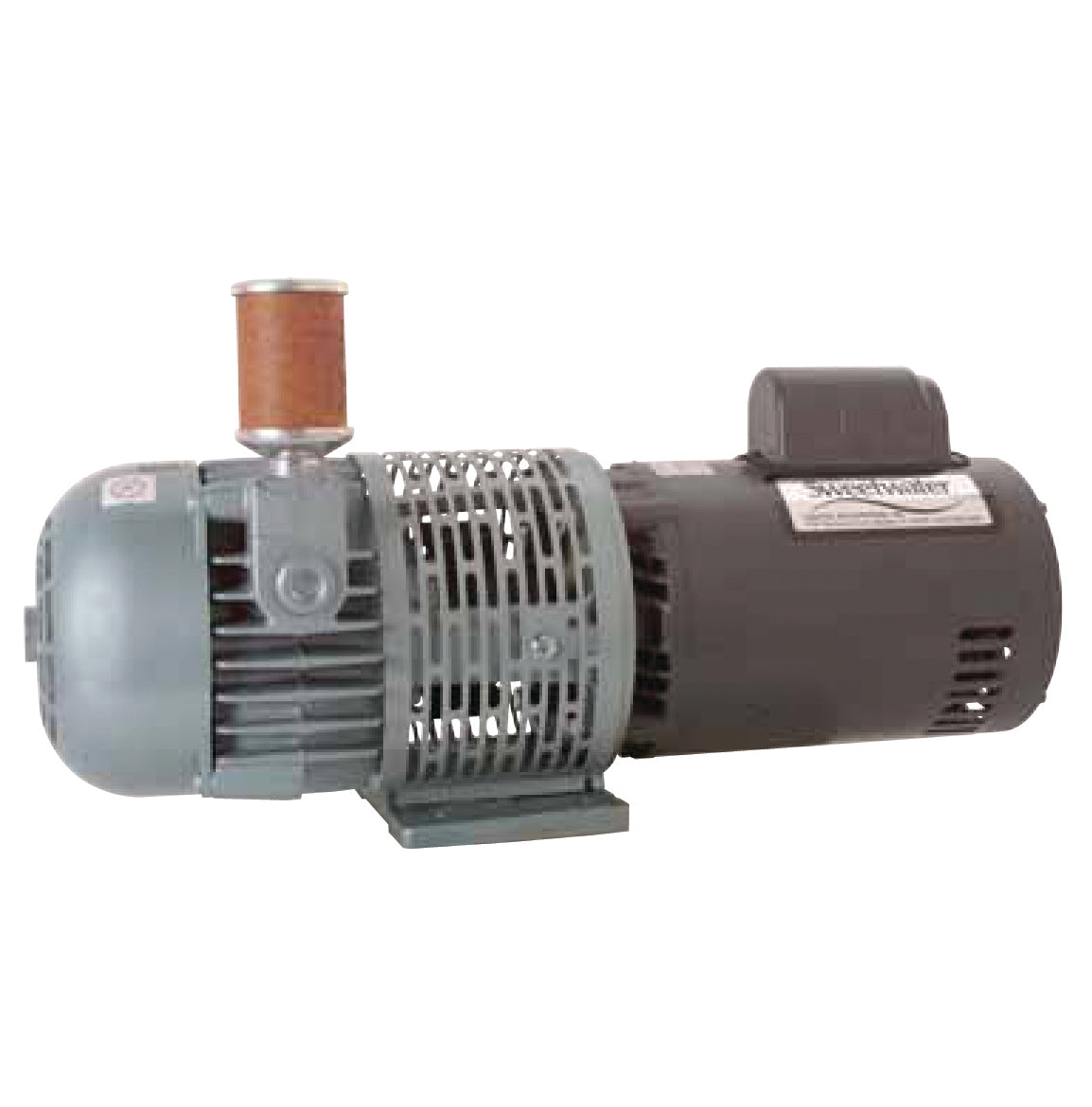

This oil free vane compressor can be powered by an electric motor (as shown) or by belts and pulleys. The vane life is 9 to 18 months, depending on rpm and pressure. The shaft is 7/8” diameter, 41/2” H and rotates counterclockwise (facing shaft).
Operating range is 800 to 1,800 rpm. Motor horsepower depends on rpm and pressure. All vane compressors are equipped with an inlet air filter and 1” NPT ports. Motors listed are 1,725 rpm ODP, but others are available. Power cords are not included. These vane compressors are guaranteed for one year (not including vanes or filters). Three phase vane compressors ship with the motor coupling removed. One year warranty. Made in USA.

Motor Specs

Compressor Phase Volts Hz
Head Only N/A N/A N/A
2 HP 1 Phase 230 V 60 Hz
2 HP 3 Phase 208/230/460 V 60 Hz

Operating Specs

Compressor CFM at 1,725 rpm at 5 psi CFM at 1,725 rpm at 10 psi Max psi

Running Amps at     8 psi (230V, 60Hz)

Head Only 19.5 17.9 10 --
2 HP 19.5 17.9 10 7.6
2 HP 19.5 17.9 10 5.5
