Semi-Square Poly Tanks
SKU: SST-2618
$455.00
Size: 50 Gallon
Description

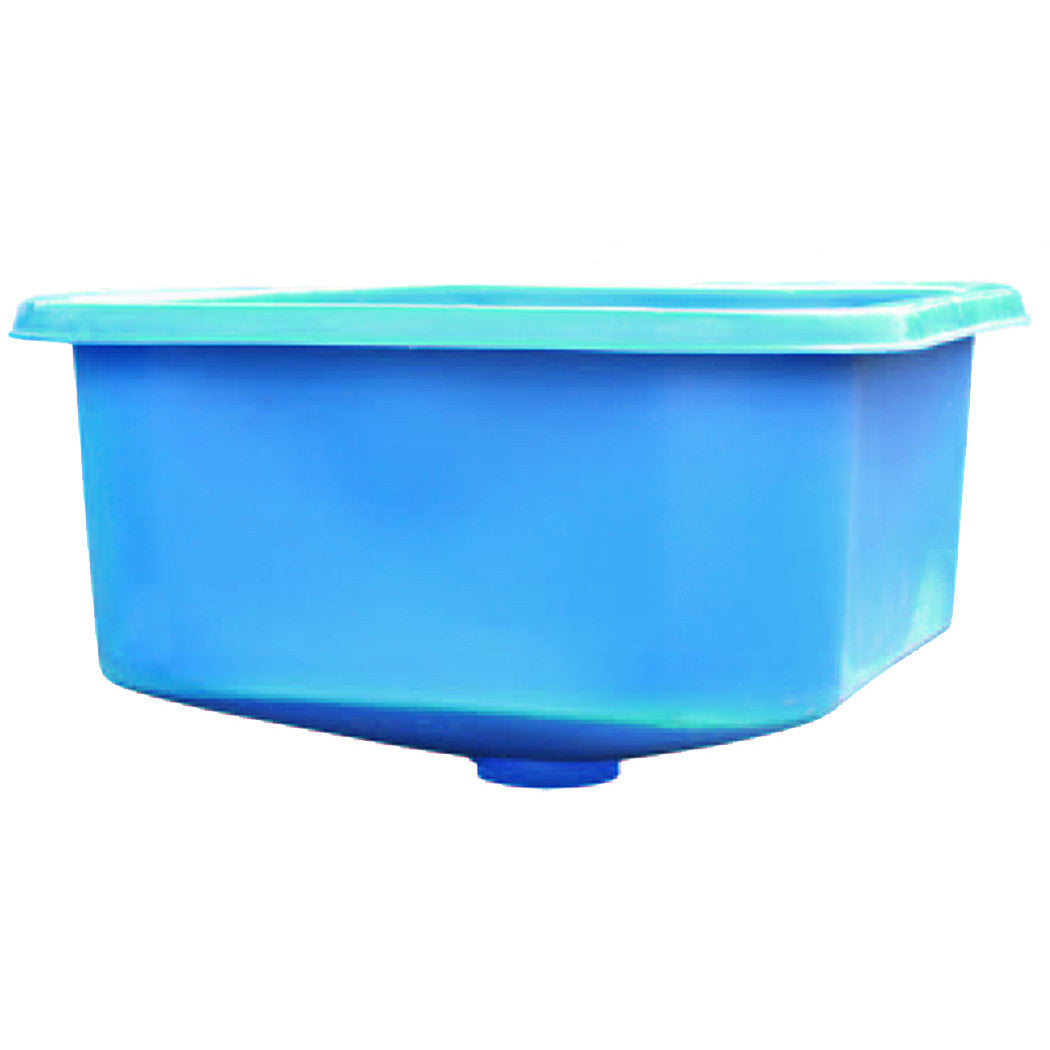

If space is a consideration for tank layout, these semi-square (rounded corner) polyethylene tanks will provide a greater volume of water per floor space than round tanks while still providing very good self cleaning capabilities. They are sloped for complete tank drainage. Standard colour is blue.
The nominal wall thickness is between 3/16” and 1/4” making a nice sturdy tank.

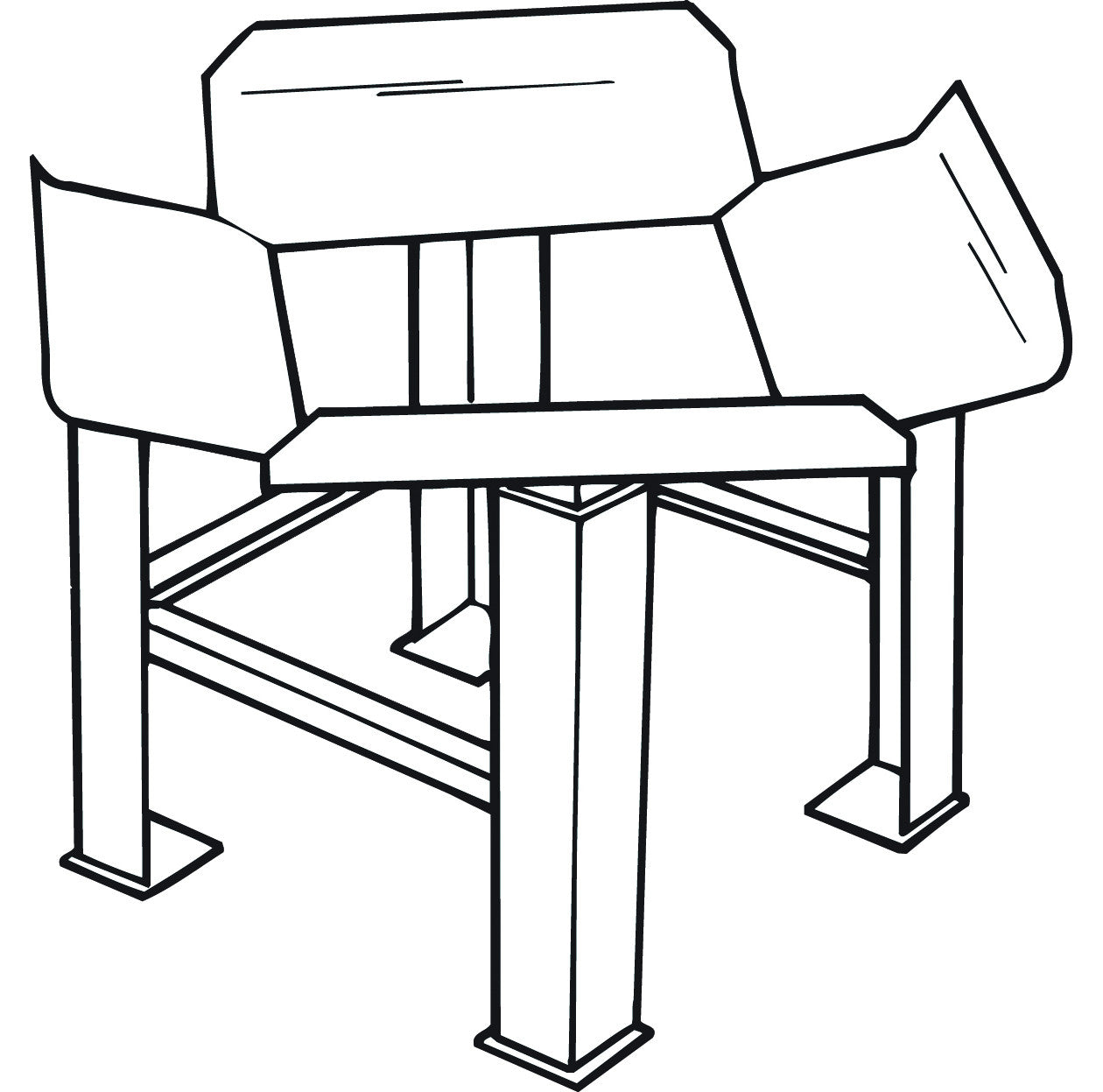

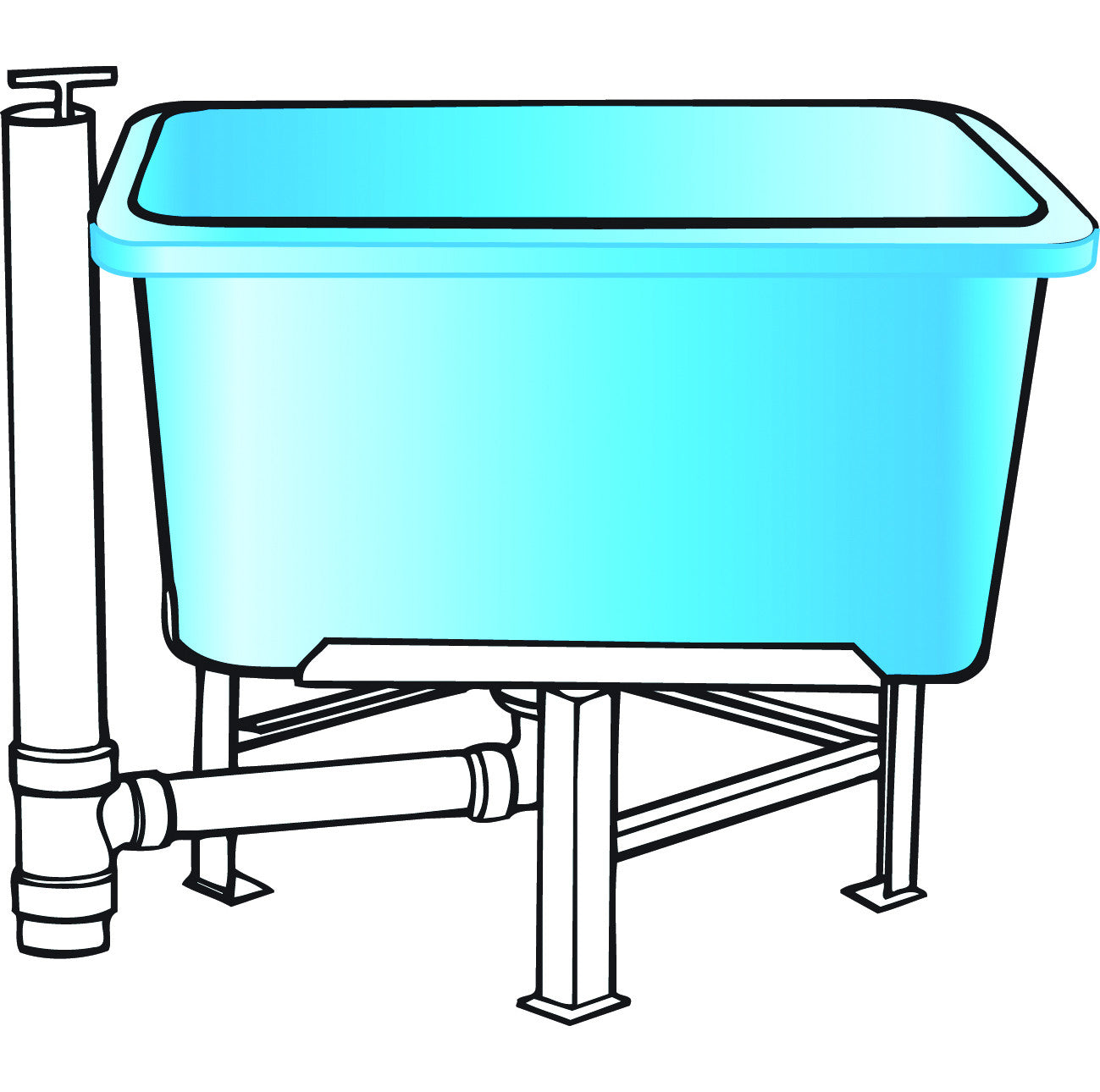

Due to sloped bottoms tanks must be supported by a stand or 18” bed of sand.
Dimensions are approximate, due to rounded corners.
Specs

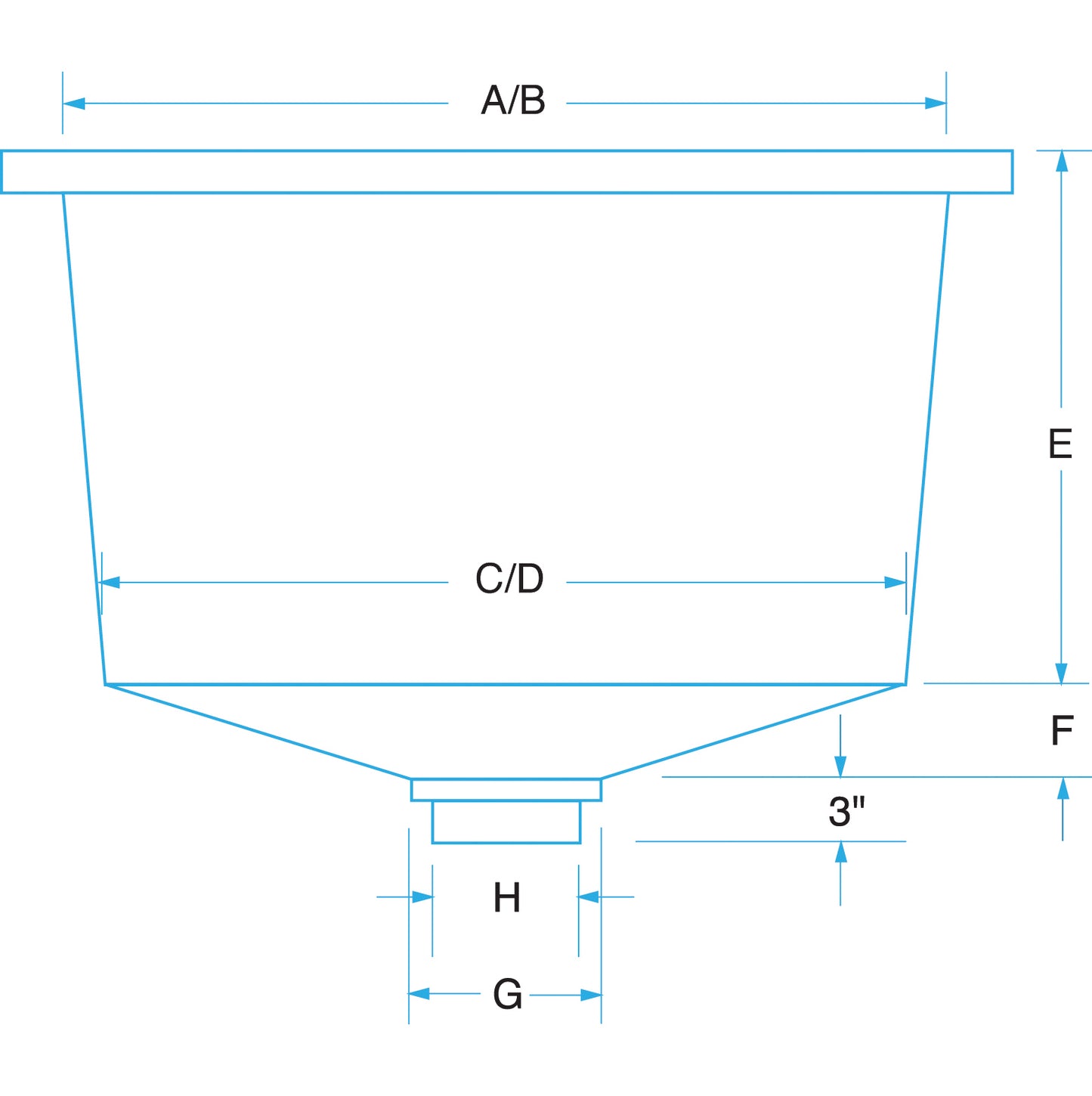

*** Go to the fourth picture ***
| Gallons | Top (A/B) | Bottom (C/D) | Sidewall Depth (E) | Cone Depth (F) | Cover Insert (G) | Drain Dia. (H) |
| 50 | 26" | 22" | 18" | 4" | 9" | 7" |
| 110 | 31" | 29" | 27" | 3" | 9" | 7" |
| 180 | 42" | 38" | 22" | 4.5" | 9" | 7" |
| 450 | 62" | 58" | 28" | 9" | 13.5" | 11.5" |
